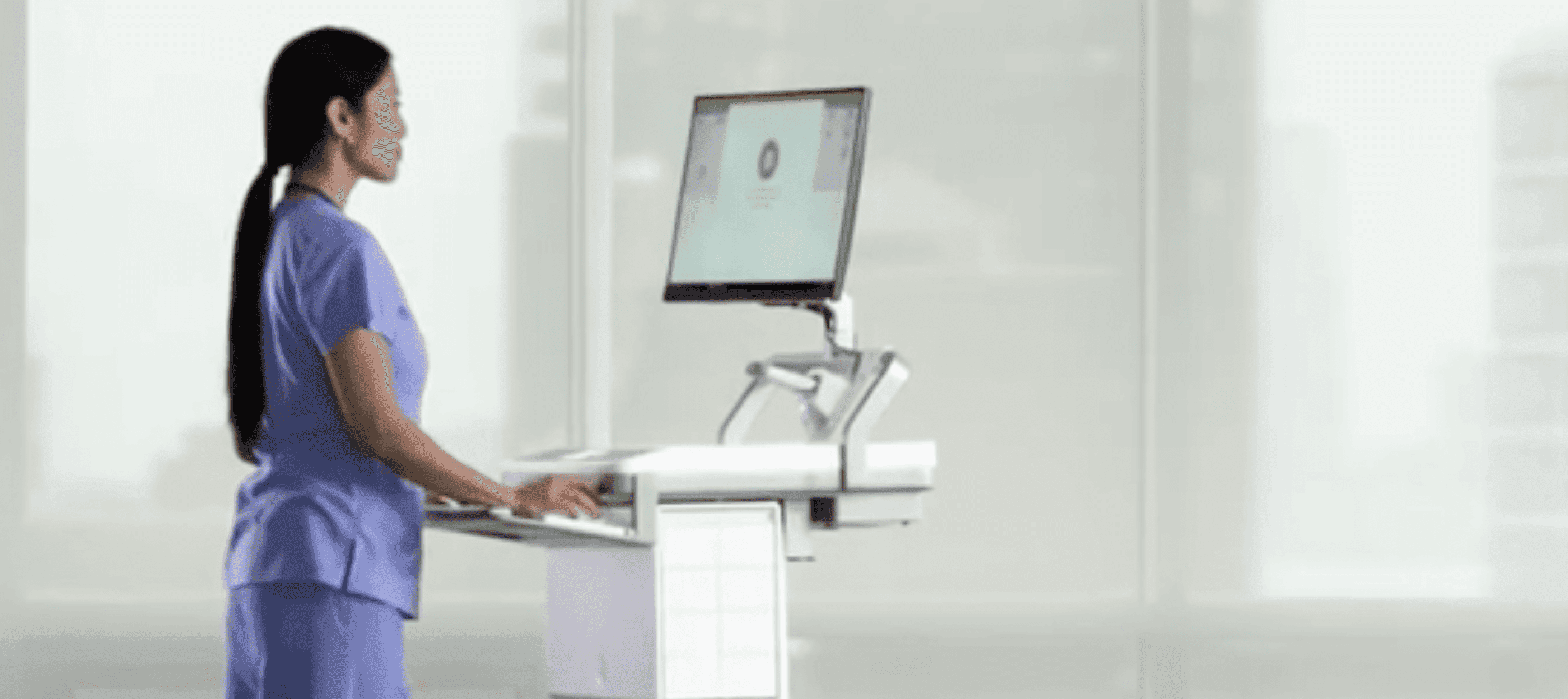

M38e Computing Workstation
Easy-to-Use Healthcare Computing Workstation
The M38e from Capsa Healthcare is an evolution of the most proven point-of-care computing cart in healthcare. With features that provide superior ergonomics, enhanced ease-of-use, and expanded storage flexibility, the M38e maximizes clinical efficiency and elevates the performance of your health IT program.
M38e Mobile Computing Overview
M38e Mobile Computing Overview
Key Features
- Slim profile glides through tight care settings
- Large work area with expandable surface feature
- Increased battery runtime for improved performance
- Large hardware storage area for expanded tech organization
- Fully adjustable monitor mount and choice of ergonomic keyboard trays
- Enhanced lighting features to assist with navigating and working in darkened areas
- Enhanced power base with improved venting system for safety
- Comfortable two-position handles simplify mobility
- Choice of standard or electronic vertical adjustment
Click the buttons below to learn more
Toggle Marker
Adjustable height, comfort handles, lightweight maneuverability help minimize strain
Toggle Marker
Efficient and reliable power system provides extended runtimes
Toggle Marker
Flexible platform is adaptable to support many care applications including Vaccination, Registration, Phlebotomy or Telehealth workstation needs
Toggle Marker
Configurable with a selection of standard drawers and bins in electronic locking or non-locking
Toggle Marker
Adjustable monitor mount permits 180° side-to-side swivel, 5” independent vertical adjustment and a tilt range of 30° up and 5° down
Toggle Marker
Simple to maneuver with its light-weight design and premium casters
Well Suited For
- Med/Surg Department
- Respiratory
- Emergency Dept
- Ambulatory/Outpatient Areas
- Operating Rooms
- ICU
- Patient Registration
Specifications
- Base Size: 17″ x 17″ (43.2 cm x 48.3 cm)
- Starting Weight: 87.5 lb (39.5 kg)
- Height Adjustment Range: 16″ (40.6 cm)
- Height Range: 49.3″ to 65″ (125.2 cm to 165.3 cm)
- Work Surface: 17.25″ W x 10.25″ D (43.815 cm x 26.035 cm)
- Casters: 4″ (10.2 cm) 2 locking, or 4″ (10.2 cm) 2 locking w/optional Tracking Caster, or 5″ (12.7 cm) 2 locking w/optional Tracking Caster
- CPU Cavity: 17.0″ W x 13.25″ D x 3.0″ H (43.8 cm x 33.65 cm x 7.62 cm)
- Display Max Weight: 15 lbs (6.8 g) max 24″ monitor max
- Warranty: 3 years
Prop 65 Warning: The keys for the drawer lock can expose you to chemicals including Styrene and Lead which is [are] known to the state of California to cause cancer.
Resources
Product Literature
M38e Product Sheet
Product Literature
Point-of-Care Service Brochure
Warranty
Capsa Healthcare Warranty
Product Manuals
M38e User Manual – Mechanical Lift
Product Manuals
M38e User Manual – Electric Lift
Product Manuals
Capsa Cart Cleaning Guidelines
Product Manuals
Preventive Maintenance – Power Carts
Case Study
Wye Valley NHS Trust Case Study
Case Study
Jackson Health Case Study – The MIRACLE Initiative
White Paper
White Paper: Future of POC Workstations
Video
M38e Mobile Computing Cart Tutorial
Optional Accessories
Wire Basket
7.2"H x 14" W x 5.6" D
7.2"H x 14" W x 5.6" D
XL Wire Basket
9.17"H x 16.14"W x 9.06"D
9.17"H x 16.14"W x 9.06"D
Waste Bin
Task Light
Pre-Drilled Rear Bin Scanner Plate
Rear Bin Cover Plate
Height Adjustable Tilt Swivel Keyboard Tray
Height Adjustable Tilt Swivel Monitor Mount
Rotating 5" Height Adjust Monitor Bracket
Document Scanner Shelf
13.5"L x 4"W, 3.5 lbs max
13.5"L x 4"W, 3.5 lbs max
Printer Shelf
Forked Scanner Holder
Zebra Printer Holder
Zebra Printer Shelf
3.61"H x 12.13"W x 5.17"D
Weight: 3lbs.
3.61"H x 12.13"W x 5.17"D
Weight: 3lbs.
Scanner Shelf
SaniWipes Bracket
PDI Wipe Bracket
Infection Control Wipes Bracket
Sharps Bracket
LCD Access Pack Storage Unit
Rotating Monitor Bracket
IV Pole
